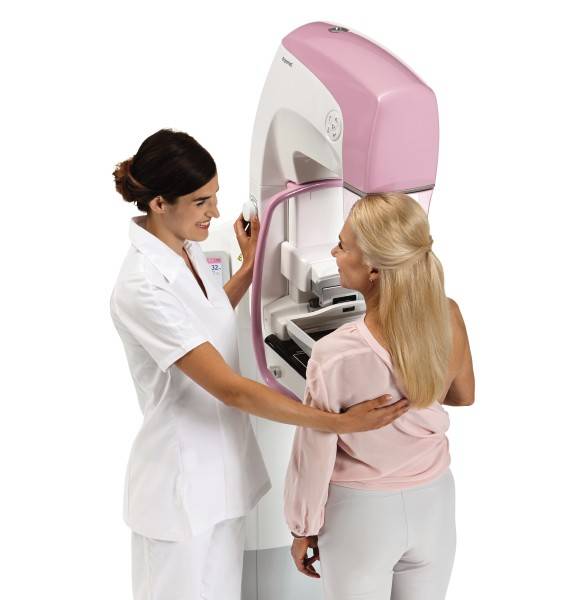

Planmed Clarity™ 2D
Optimized screening and diagnostic mammography
Planmed Clarity™ 2D is a comprehensive digital mammography system. The durable unit can be used for screening, diagnostic examinations, and stereotactic biopsies. Planmed Clarity 2D system comprises all the features of the Planmed Clarity™ product family.
Individually tailored images and ideal ergonomics
We at Planmed are committed to designing equipment that provide the best experience for both patients and professional users. With the Planmed Clarity 2D system, your mammography workflow is taken to the next level.
The Planmed Clarity™ Manager and Planmed Clarity™ Flow software provide a clear and simplified user experience. The customizable individual workflow eases the daily work of the technologists allowing them to concentrate more on the patient. The Planmed Clarity Flow user interface with dual touchscreens enables easy access to the unit’s functions. The Planmed post-processing for contrast, sharpness and brightness can be fine-tuned to achieve the perfect image for each radiologist’s individual needs.
Designed for you and your patients
User comfort and optimal workflow performance are guaranteed by fully motorized functions, isocentric C-arm movements, and the ergonomic placement of unit controls. The Planmed Clarity Flow user interface guides the technologists through the different imaging modes as well as calibrations in a fast and easy way. In addition, the user can send prior images to the Planmed Clarity Flow software to ease the positioning.
Additional imaging exams
In addition to screening mammograms, the Planmed Clarity 2D system supports additional diagnostic work-up examinations and biopsies. These may include additional mammographic views, magnification imaging, and biopsy procedures.
Planmed Clarity2D can be upgraded in the field at any time to include digital breast tomosynthesis.
Detector technology: a-Si
Detector size: 24 x 30 cm
Pixel size: 83 um
X-ray tube anode material: Tungsten
Filters: Rhodium, Silver
Swivel range: -135 to +180 degrees
Source-detector distance: 65 cm
Dimensions: 1026 x 994 x 755 mm
Weight: 185 kg
Acquisition Workstation Monitors: 2.1 MP (standard) and 3 MP (optional)
