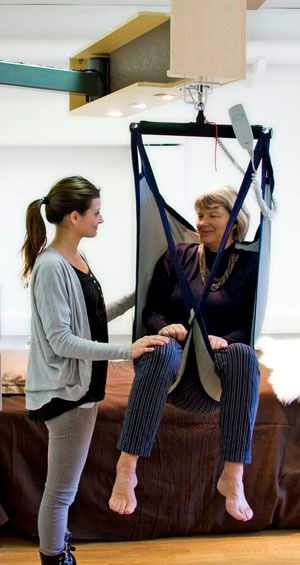

Wall-mounted patient lift INTEGRALIFT™ Integralift

Wall-mounted patient lift INTEGRALIFT™ Integralift
INTEGRALIFT™


Technical specifications 1. Closet 2. Top cabinet 3. Integralift Structure 4. Rear jib 5. Front jib 6. Charger: 24V, Mascot 9940 7. Lifting strap 8. Lifting bar 9. Remote 10. Emergency stop 11. Sling Lift radius: 1,5 meter (5 feet) SWL: 230 kg (507 US pounds) Warranty 2 years Battery 24 V DC, 4,5 Ah, sealed lead battery, 40 lifting cycles Battery charger 100-240 VAC, 50-60 Hz Lifting speed 50-70 mm/sec. Soft start and soft stop Emergency stop Electrical Emergency lowering Electrical and mechanical Protection class IP 20 quality certified in accordance with: ISO 10535:2006(E) IEC 60601-1 2007
  • Configuration: : wall-mounted
******
