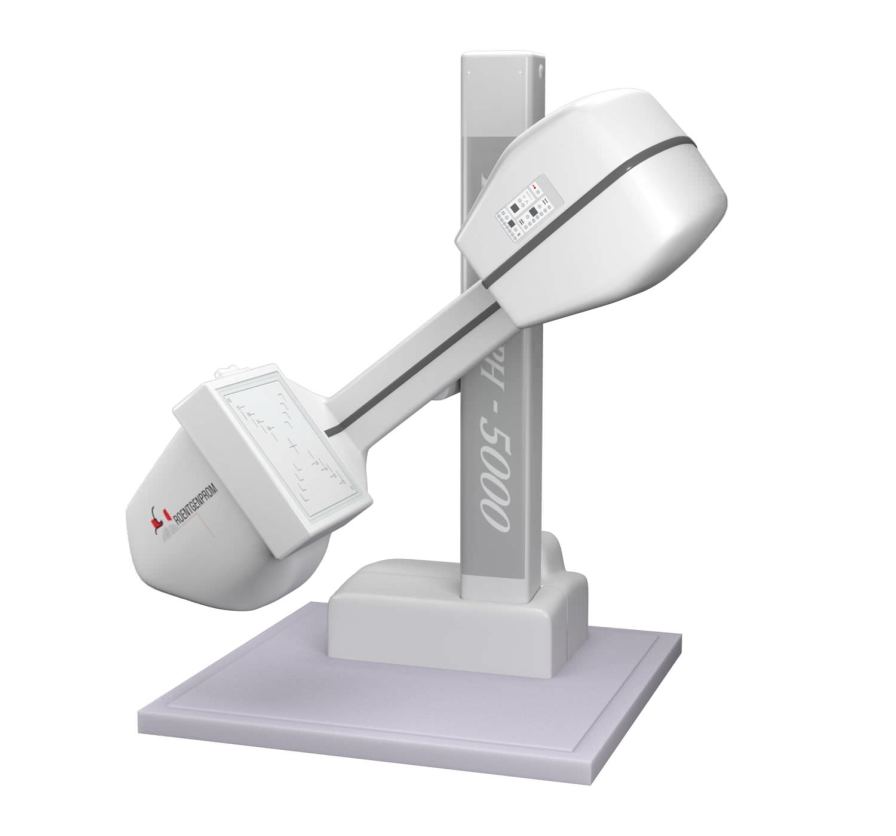

ProGraph has units of the series also have radio lucent tables for execution of distinct kinds of investigation as well as for surgical procedures in lying position. Digital Radiography Unit of ProGraph series was leading for radiographic and diagnostic investigations in patient's standing, sitting. In ProGraph 5000 units the cross arm have fixed focal distance 1000 mm and may rotate from -90° to +90°.. Spatial resolution of ProGraph 5000 is 3,5 Lp/mm. In all units the cross arm can move in vertical direction to 1100 mm. Device support is provided with cross arms which cameras with CCD matrix, X-ray tube and diaphragms with light localizer are fixed on. The function of automatics for organs helps the doctor choose needed characteristics of survey. They have cross arm rotating round the axis that locates on the column of cross arm vertical transference. Unit supplied with Radio-lucent table from fine-dispersed MDF with carbon-fiber deck.
- Features: : without table, with swiveling tube-stand
- Technology: : digital
- System type: : radiography system
- Type of imagery: : for multipurpose radiography
