Pachymeter (ophthalmic examination) / specular microscope / non-contact pachymetry CellChek EB-10 Konan Medical USA

Pachymeter (ophthalmic examination) / specular microscope / non-contact pachymetry CellChek EB-10 Konan Medical USA
CellChek EB-10

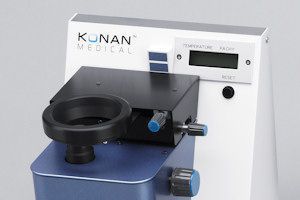

The CellCheck EB-10 Eye Bank Specular Microscope is both easy to use and simple to operate. If features a fully-digital dual camera system, LED illumination of samples, a built in pachymeter, and a software-based analysis toolkit. Dual camera operations are controlled by means of CMOS semiconductor technology. The wide angle viewing field measures 0.48 x 0.60 mm, and the analysis area measures 0.20 x 0.28 mm. The unit accepts vial dimensions of up to 35 mm in diameter. Temperature and pachymetry measurements are display on the units LCD screen. The system can be connecter to a PC or network may means of its USB 2.0 port. The system operates from either a 110 V or 240 V 50-60Hz power source. This compact unit measures only 200 mm wide by 255 mm high by 220 mm deep.
a:1:{i:0;a:2:{s:4:"name";s:19:"Type of instrument:";s:3:"val";s:31:"specular microscope, pachymeter";}}
******
