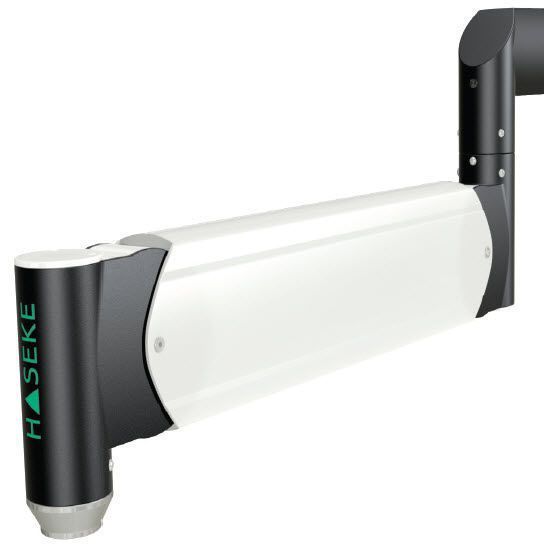

Medical monitor support arm / wall-mounted HMA Lift 25 Haseke

Medical monitor support arm / wall-mounted HMA Lift 25 Haseke
HMA Lift 25

for Price / Quote
for Documentation
for Questions

Lift System HMA Lift 25 Features: Considerable height adjustment suspension system with interior cable ducting for flat screens and control boxes Loading capacities from 0,3 to 31 kgs (depending on the system length) Vertical stroke +/- 40° Considerable adjustment of stroke limiter up to +/- 0° 4 system lengths: 500, 650, 800, 950 mm System can be upgraded with suspension system HMA HLT Externally mounted rotation limiter in steps of 30° of the horizontal swivel range Cable duct can be accessed easily for internal cable management with high cable volume Option: Blocking of the vertical stroke Standard color: Cover RAL 7035 (light gray), Head and foot joint RAL 7016 (anthracite gray) With the HMA Lift 25 the team of engineers and design experts has succeeded in creating a big jump ahead.
  • Applications:medical
  • Configuration:wall-mounted
